SPECIFICATIONS

Brand Name: Wovibo

Cooler Type: Low Profile

Model Number: LP-6A

Power Interface: 4PIN

Power Interface: 5v-3pin ARGB

Blade Quantity: 9

Fan Speed: 800 - 1800rpm

TDP: 180W

Supported CPU: LGA 1150

Supported CPU: LGA 1151

Supported CPU: LGA 1155

Supported CPU: LGA 1156

Supported CPU: LGA1200

Supported CPU: LGA 1356

Supported CPU: LGA 1366

Supported CPU: LGA 2011

Supported CPU: LGA 2011-3

Supported CPU: LGA 2066

Supported CPU: Socket FM1

Supported CPU: Socket FM2

Supported CPU: Socket AM3

Supported CPU: Socket AM2

Supported CPU: Socket AM2+

Supported CPU: Socket FM2+

Supported CPU: Socket AM3+

Supported CPU: AM4

Heatpipes: 6

Fan Life: 50000 hrs

Air Volume: 64

Bearing: Fluid Bearing

Series: INTEL / AMD

Noise: 26dBA

Certification: CE

Air Pressure: 1.75

Lines: 1 Lines

Origin: Mainland China

Fan Size: 120mm

Package: YES

Supports AMD: AM2/AM2 +/AM3/AM3 +/AM4/FM1/FM2

Supports Intel: 1156/1155/1151/1150/1700/2011/2011-3

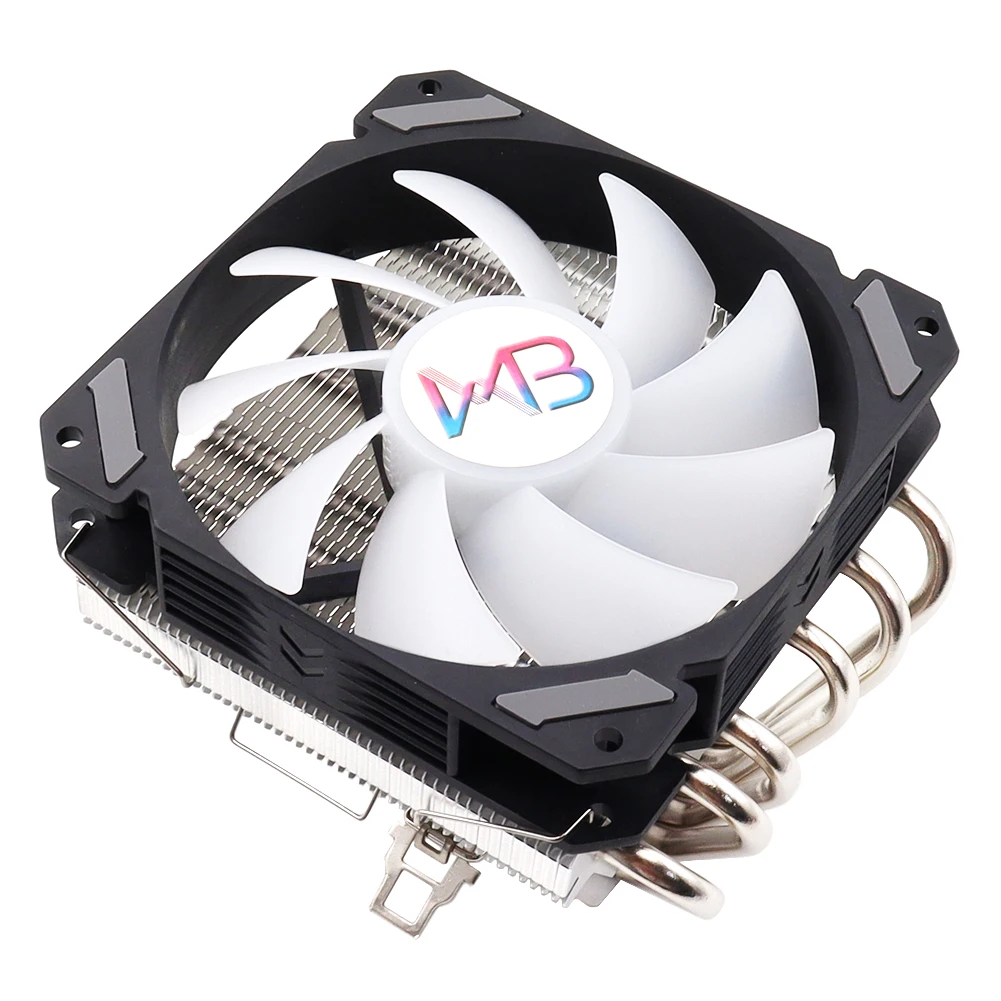

New Cooler introduction:

The fan interface is PWM-4PIN + 5V-3PIN(ARGB) interface. if only PWM-4PIN cable connected , fan lighting with Auto-RGB .Support all of motherboards.After 5V-3PIN Connected , Fan lamp is ARGB,supports Motherboard Sync

product advantages:
1.The heat pipe has undergone nickel plating treatment. Prevent oxidation and blackening of the heat pipe. The appearance looks better.
2. 6 Heat pipe technology. Good heat dissipation performance, up to 180W TDP.
3. The front of the fan is displayed on the side panel of the chassis. The appearance is better than the tower.
4.The 120mm fan reduces the temperature of the motherboard in a large area.
5.The center distance of the heat pipe edge to the base is carefully designed to avoid interference with the memory module.
6. Down-blow design. While lowering the CPU temperature, it also lowers the motherboard temperature. .



Supports Socket :
Intel LGA 1150 1151 1155 1156 1200 1700 2011 Socket
AMD AM2/AM2+/AM3/AM3+/AM4/AM5/FM1/FM2

Specification:
Material: copper
Rated voltage: DC12V
TDP: TDP: 150 - 190W  Max
Input power: 4.5W
Speed: 1800RPM ± 10%RPM

Max air flow: 64 ± 10% CFM
Maximum air pressure: 1.75 mmH2O
Acoustical noise(AVG.): 28 dBA
fan size : 120mm*120mm*25mm

Package Included :
1 x Cooler
1 x Cooler Bracket
1 x thermal paste  (High quality Thermal ＞8 W/m-K)  ( Packages sent to Mexico will not contain thermal silicone grease. Because the Customs do not support liquid transport )
