Description
SPECIFICATIONS
Brand Name: ANYCUBIC
CE Certification: Yes
Origin: Mainland China
Bed Temp: N
Slice Thickness: 10μm
Maximum Printing Speed: 60mm/h
Nozzle Diameter: N
Diameter Temp: N
Auto Leveling: no
Maximum Print Size: 200x195.84x122.4mm
Color Print Speed: N
Consumables Diameter: N
Certification: CE
Printing Speed: 15-60mm/h
Language: English
Fliament: UV Resin
Slice Software: Anycubic Photon Workshop 3.0 Free Slicer
Power Supply: 80W
Precision: 6K 5760x3600px Resolution
Operating System: Photon X 6Ks
File Format: ALL
Molding Technology: LCD
Interface Type: USB
Maximum Working Speed: 60mm/h
Voltage: 110-220V
Removable cover: Effectively block UV radiation
Z-axis: Dual-linear Z-axis, 10μm precision
Resin: One-piece design with scale lines
Exposure Screen: 9.1" monochrome screen
Resolution: 6K 5760x3600 pixels
Contrast Ratio: 380:1
Light Transmission: 6.5%
LCD Lifespan: 2,000 hours
Printing Platform: Laser-engraved aluminum platform
Large Film Protector: Replaceable design, anti-scratch film
Power Input: 80 Watts rated power
Control panel: 3.5-inch resistive touchscreen
Data input: USB-A 2.0
Light Source: Anycubic LighTurbo Matrix light source
Leveling: 4-point manual leveling
Printing Speed: 15-60mm/h
Machine Weight: 8.5kg/18.7lbs
Print Volume: 4.76 liters/161 Ounces
Machine size: 290x260x417mm
Print size: 195.84x122.4x200mm
Print Size: 7.7x4.8x7.8 inches
Machine Size: 1.4x10.2x16.4 inches

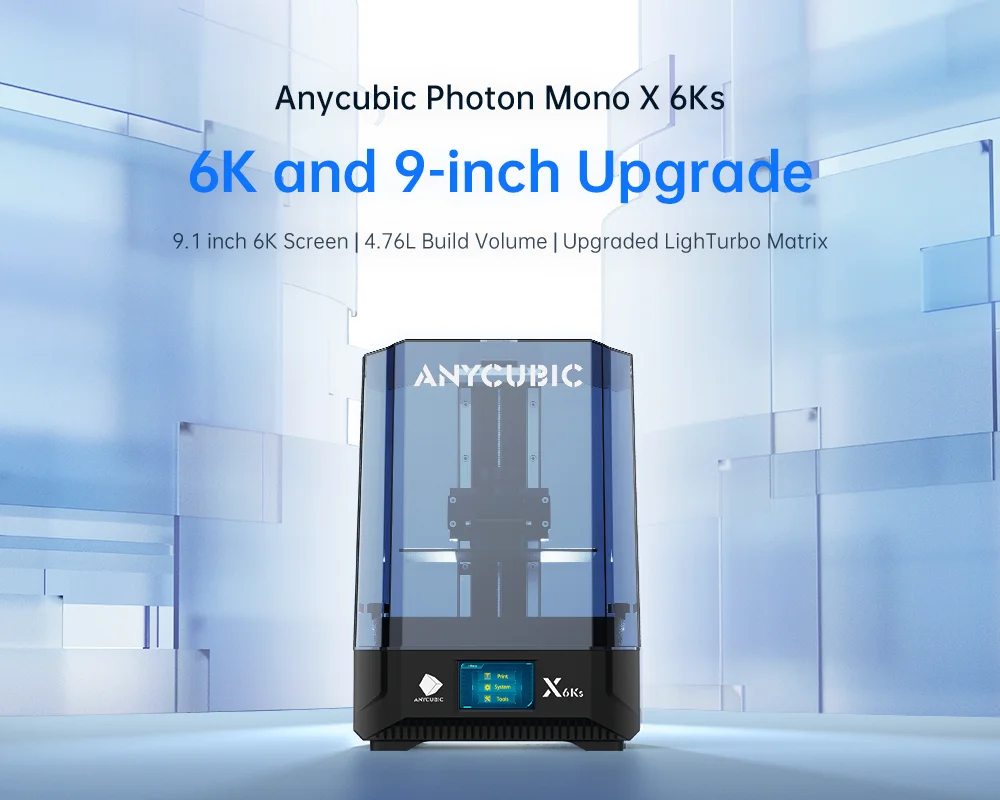

Anycubic Photon Mono X 6Ks
6K and 9-inch Upgrade
9.1 inch 6K Screen | 4.76L Build Volume | Upgraded LighTurbo Matrix
9.1 inch 6K Screen - A High-resolution Experience
Adopts a 9.1 inch 6K high-definition monochrome exposure screen with a resolution of up to 5760*3600px, bringing sharper and delicate details presentation supported by a high contrast ratio of 380:1.

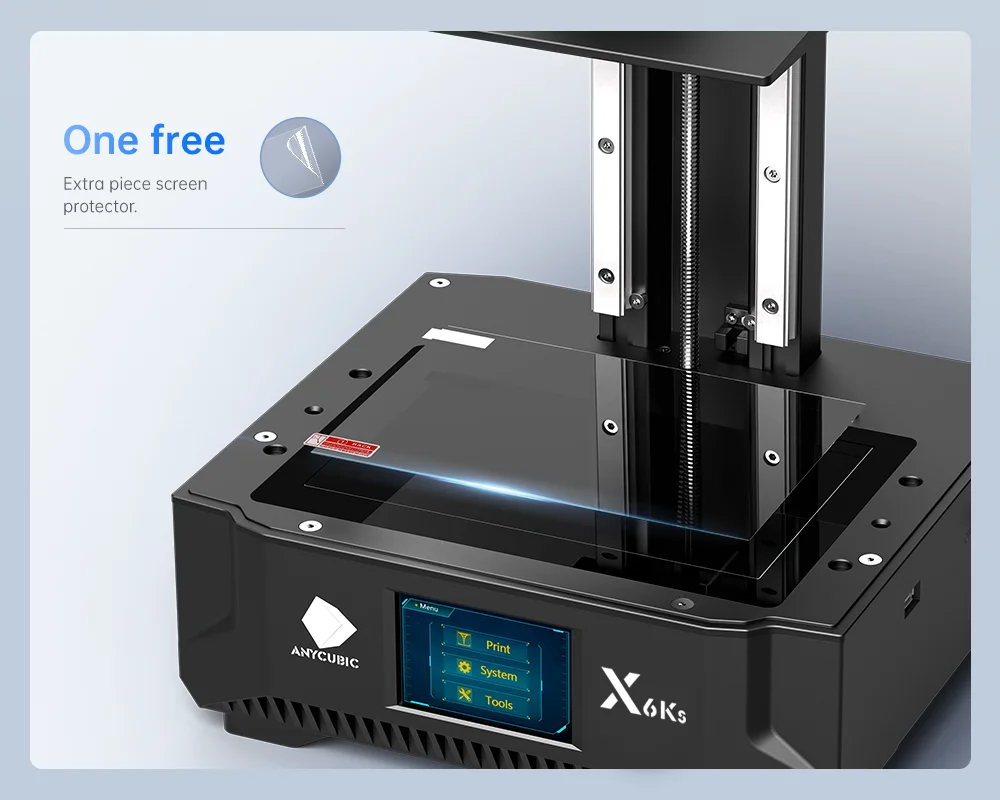

Comes with a high light transmittance anti-scratch film protector, effectively protecting the screen from wearing and scratches while ensuring printing accuracy. One free extra piece included for easy replacement.
4.76L Printing Volume
A printing dimension of 195.84X122.4X200mm (LWH) brings you up to a maximum printing volume of 4.76L, ensuring more printings in one go.
Upgraded Light Source, Stable Dual-linear Rail
The upgraded Anycubic LightTurbo matrix light source and high-precision textured optical lens provide a stable and even parallel light source, effectively removing optical layers and grid lines and creating a smooth and delicate model surface.Printing speed reaches 15-60 mm/h, collect all your models even sooner.

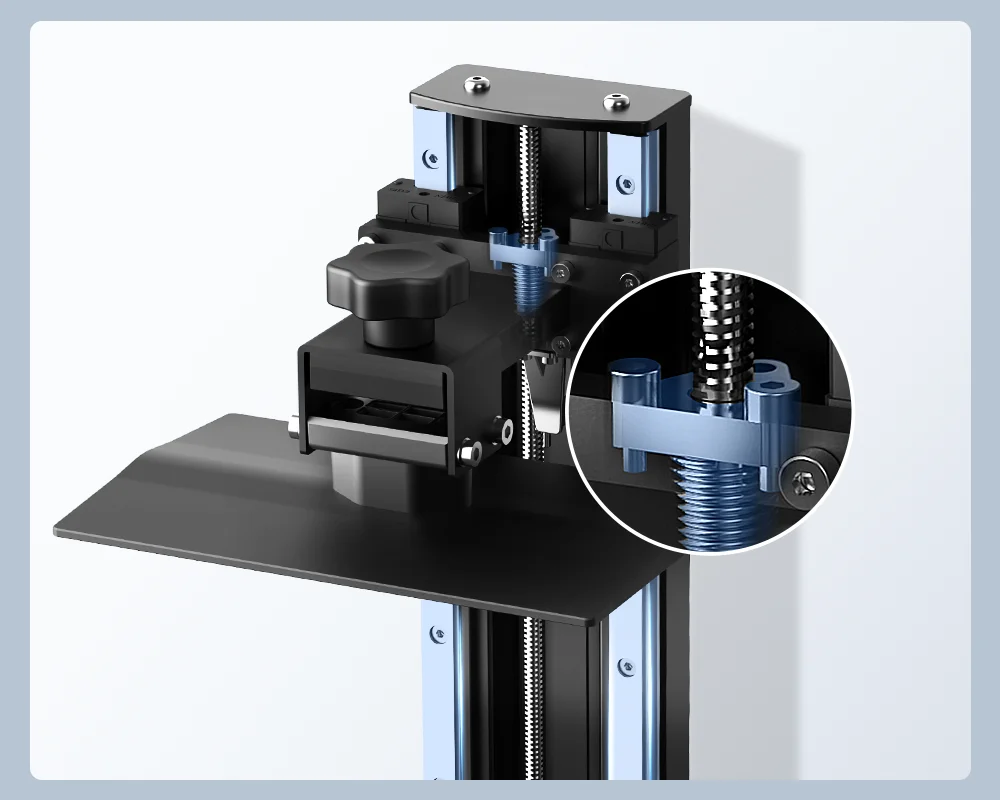

The Stable Dual-linear Z-axis Rail and its highly wear-resistant POM anti-backlash nuts restrain the Z-axis' stability to the micron level, effectively eliminating printing layers and ensuring all printing details.
Laser-engraved Build Platform
The Laser-engraved technique that the printing platform adopts outstands sandblasting ones in platform flatness and adhesion, greatly reducing fall-offs and warping-ups and bringing you an even better success rate.
Model Display
Upgraded Slicer Professional and Free
The upgraded free self-developed slicer Anycubic Photon Workshop 3.0 brings you an even better slicing experience in punching, supporting, shelling and layout arranging.Simplified UI makes slicing easier. The new model repairing function also helps boost the printing success rate.
