Description
SPECIFICATIONS
Brand Name: BASEUS
Origin: Mainland China
Case Material: Aluminum
Supporting Hard Drive Capacity: 4TB
External Interface: USB
Internal Interface: SATA
Package: Yes
Size: 1.8"
Product size: 120*36*13 mm
Color: Space Grey
Material: Aluminum alloy
Product Weight: About 51.8g (without packaging)
Compatible Protocol: M.2 NVME/M.2 SATA
Applicable SSD Size: 2280, 2260, 2242, 2230
Accelerated File Transfer Protocol: UASP
Other Function: Support TRIM command
Operating Systems: For Windows, for Apple OS, for Linux.
M2 SSD Case: NVME SATA Dual Protocol
M.2 to USB Type C: 3.2 Gen 2, USB 3.1
Portable SSD Sata Nvme: Enclosure External PC Case
Support: Dropshipping, wholesale, retails
Storage Expansion with High Portability
Baseus FlyJoy Series SSD Enclosure (M.2 NVME and SATA)
Features:
1. NVMe/SATA Protocol: 2280/2260/2242/2230
2. 10Gbps transfer speed
3. RGB ambient light
4. ON/OFF button
5. Powerful chip
6. Silicone thermal conducting pad

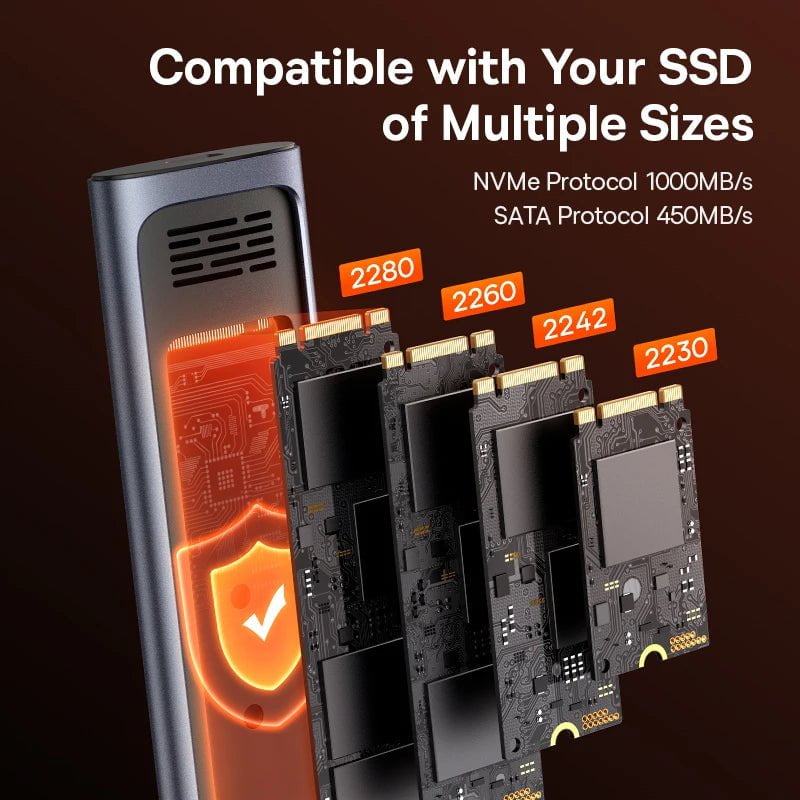

2 Protocols, 4 Sizes
Supports M.2 NVME and SATA protocols
and is compatible with 2280/2260/2242/2230 hard drives with various models.
NVMe/SATA Protocol
NVMe Protocol 1000MB/s
SATA Protocol 450MB/s

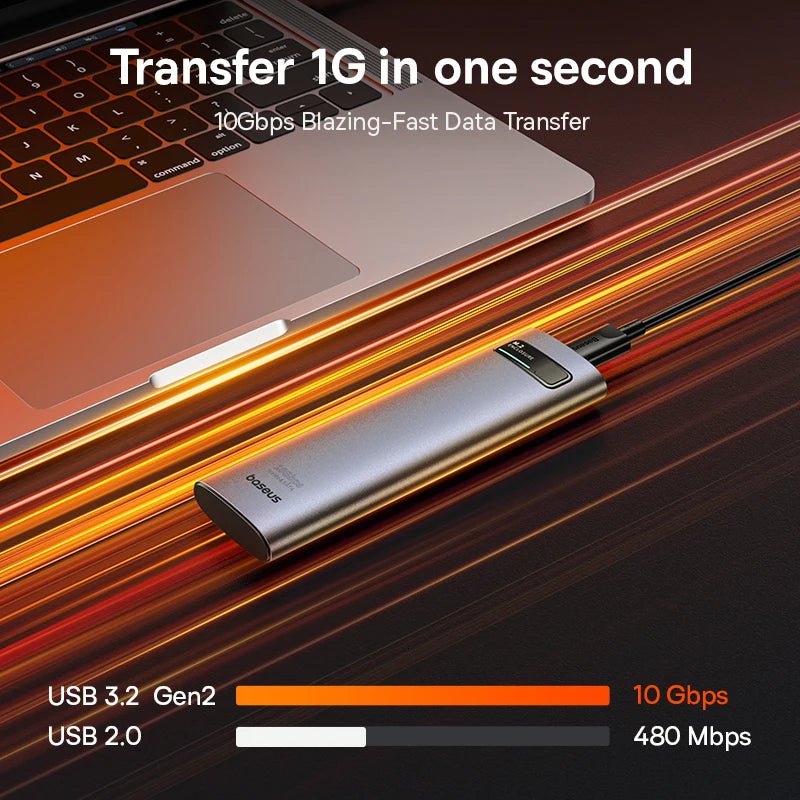

10Gbps Blazing-Fast Data Transfer
USB 3.2 Gen 2 port ensures a super-fast data transmission,
transferring 1G of data in just 1s, saving your precious time.
Convenient ON/OFF Button
Reduces power consumption and avoids data loss caused by unnecessary plug/unplug.
Powerful Control Chip
Realtek chip offers a faster and more stable data transfer with less consumption and no lag.
UASP ------ Faster transfer
TRIM ------ More efficient read/write

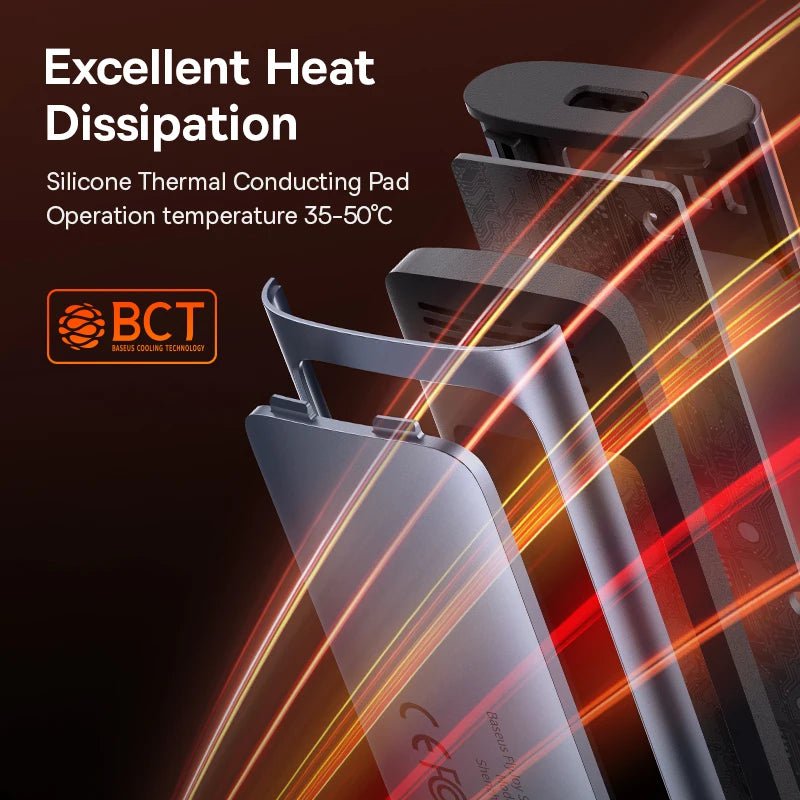

Excellent Heat Dissipation
Advanced all-round heat insulation technology with Baseus BCT temperature control technology
and aluminum shell ensures fast heat dissipation.
Silicone Thermal Conducting Pad.
Helps the heat dissipation to maintain a stable transmission rate
and prolong the service life of the SSD Operation temperature 35-50°C.
Maximum 4TB Capacity Supported
Add 4TB more storage to your laptop with easy access to any data you want.
About 1,270,000 pcs HD pictures.(3MB)
About 2000 pcs HD films. (1.5G)
About 120,000 pcs lossless music. (30MB)
About 3,810,000 pcs documents. (1MB)
Smart Auto Sleep Power Dissipation Down to 0.02W
Automatically goes to sleep after 10 minutes of no operations or data transmission to save power for longer usage.

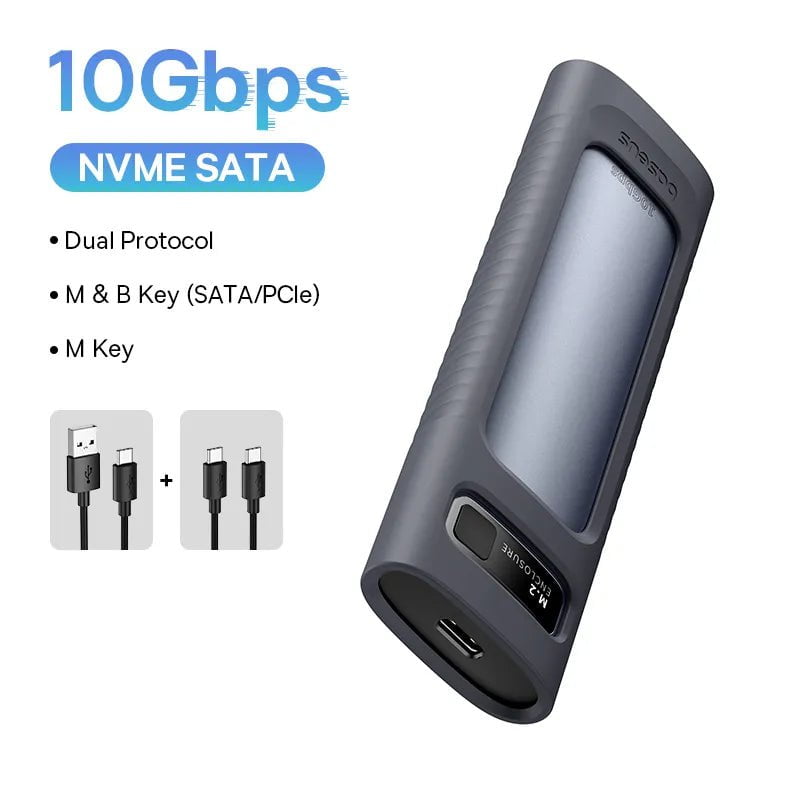

Improved Protection
Includes a silicone cover to protect the enclosure from scratches and impact.
Mini & Compact Easy to Carry
33% smaller than common hard drive enclosures, compact and lightweight with a better grip.
Two Cables Included
USB-C to USB-C
For laptops, phones, tablets, etc
USB (USB A) to USB-C
For PC, projector, game console, TV
Installation Steps
1. Remove the screws on the lid, and remove the screws of the hard drive.
2. Insert the hard drive into the M.2 slot from a 45° angle, and tighten the screws of the hard drive.
3. Peel off one side of the release liner stick the silicone pad onto the hard drive, and then peel off the other side.
4. Install the lid back on and tighten the screws, and then put on the silicone cover.
Product Specifications
1. Product size: 120*36*13 mm
2. Name: Baseus FlyJoy Series SSD Enclosure (M.2 NVMe and SATA)
3. Color: Space Grey
4. Material: Aluminum alloy
5. Product Weight: About 51.8g (without packaging)
6. Compatible Protocol M.2 NVME/M.2 SATA
7. Applicable SSD Size: 2280, 2260, 2242, 2230
8. Accelerated File Transfer Protocol: UASP
9. Other Function: Support TRIM command
10. Operating Systems: For Windows, for Apple OS, for Linux.
Package Including
