Description
SPECIFICATIONS
Brand Name: FANXIANG
Origin: Mainland China
Cooling Fin: Yes
Bus Type: PCIe 4.0x4
Nand Flash Type: TLC
Transport Protocol: NVME
Interface Type: PCI Express
Interface Type: M.2 2280
Controller: RTS5766/MAP1202/MAP1602
RGB: no
Size: M.2 2280
Application: Desktop
Application: Laptop
Application: Server
Application: Workstation
Application: Industrial Computer
MTBF: 1000000
Max Sequential Read: 7450Mbps
Package: Yes
Type: Internal
Read/Write Speed: 2000X
Max Sequential Write: 6750Mbps
Style: SSD
Certification: CE
Certification: FCC
Certification: RoHS
Certification: WEEE
Cache: NONE
Name: Fanxiang Internal Solid State Drive
Capacity: 128GB|256GB|512GB|1TB|2TB|4TB
Feature 1: 1T 2T 4T SSD Hard Disk
Feature 2: Fanxiang S500/S500 Pro/S690/S790
Feature 3: For Windows 7/8/10.Mac OS 10.9 or later/Linux/Unix
Fanxiang S500/S500Pro/S690/S790 M.2 SSD 256GB 512GB 1TB 2TB 4TB PCIe M.2 NVMe Internal Solid State Drive For Laptop Desktop
Specification:
Brand:Fanxiang
Model:S500 Pro/S690/S790
Interface Type:M.2 2280 NVMe
Storage Medium:3D TCL NAND Flash
Cooling:Graphene Cooling Sticker
Interface Protocol:NVMe, PCIe 3.0x4(S500 Pro),PCIe 4.0x4(S690/S790/S880)
Storage temperature:-40℃∽+85℃
Working temperature:0℃∽+70℃
Supported System:Windows 7/8/10.Mac OS 10.9 or later/Linux/Unix
Size:80*22*2.4mm
Weight:≈40g
Warranty:3-year
S500 Pro
Capacity:
S500 Pro-256GB:Sequential Read Speed up to 2300 MB/s;Write Speed up to 1200 MB/s.Max to 200TBW
S500 Pro-512GB:Sequential Read Speed up to 3500 MB/s;Write Speed up to 2700 MB/s.Max to 320TBW
S500 Pro-1TB:Sequential Read Speed up to 3500 MB/s;Write Speed up to 3150 MB/s.Max to 640TBW
S500 Pro-2TB:Sequential Read Speed up to 3500 MB/s;Write Speed up to 3150 MB/s.Max to 1280TBW
S690
Capacity:
S690-1TB:Sequential Read Speed up to 5000 MB/s;Write Speed up to 4500 MB/s.Max to 700TBW
S690-2TB:Sequential Read Speed up to 4800 MB/s;Write Speed up to 4500 MB/s.Max to 1400TBW
S790
Capacity:
S790-1TB:Sequential Read Speed up to 7450 MB/s;Write Speed up to 6600 MB/s.Max to 2000TBW
S790-2TB:Sequential Read Speed up to 7450 MB/s;Write Speed up to 6700 MB/s.Max to 4000TBW
S790-4TB:Sequential Read Speed up to 7450 MB/s;Write Speed up to 6700 MB/s.Max to 8000TBW
S880
Capacity:
Package Contents:
S500 Pro/S690/S790/S880 SSD x 1
Screwdriver x 1
Screw x 1
Note to buyers:
✬All products are 100% original brand products from our Fanxiang factory,if you find counterfeit products,you can contact us for a full refund
✬The capacity of storage products is 1TB=1000GB,so after plugging into the computer,you will find that the actual capacity is lower than the rated capacity,which is a normal phenomenon
✬We provide a 3-year warranty for the product.During this period, if the product itself fails (not caused by human damage or water),you can contact us for a free replacement
✬The rated speed of the product needs to be matched with the corresponding motherboard to basically achieve it.If you find a speed problem,please contact our customer service first.
High-speed Transmission
Accelerate the reading and writing performance of solid-state hard drives through intelligent SLC cache technology, up to 7450/6600MB/s,greatly improving the speed of booting,program opening,game loading,file saving and transmission,etc
Excellent Performance

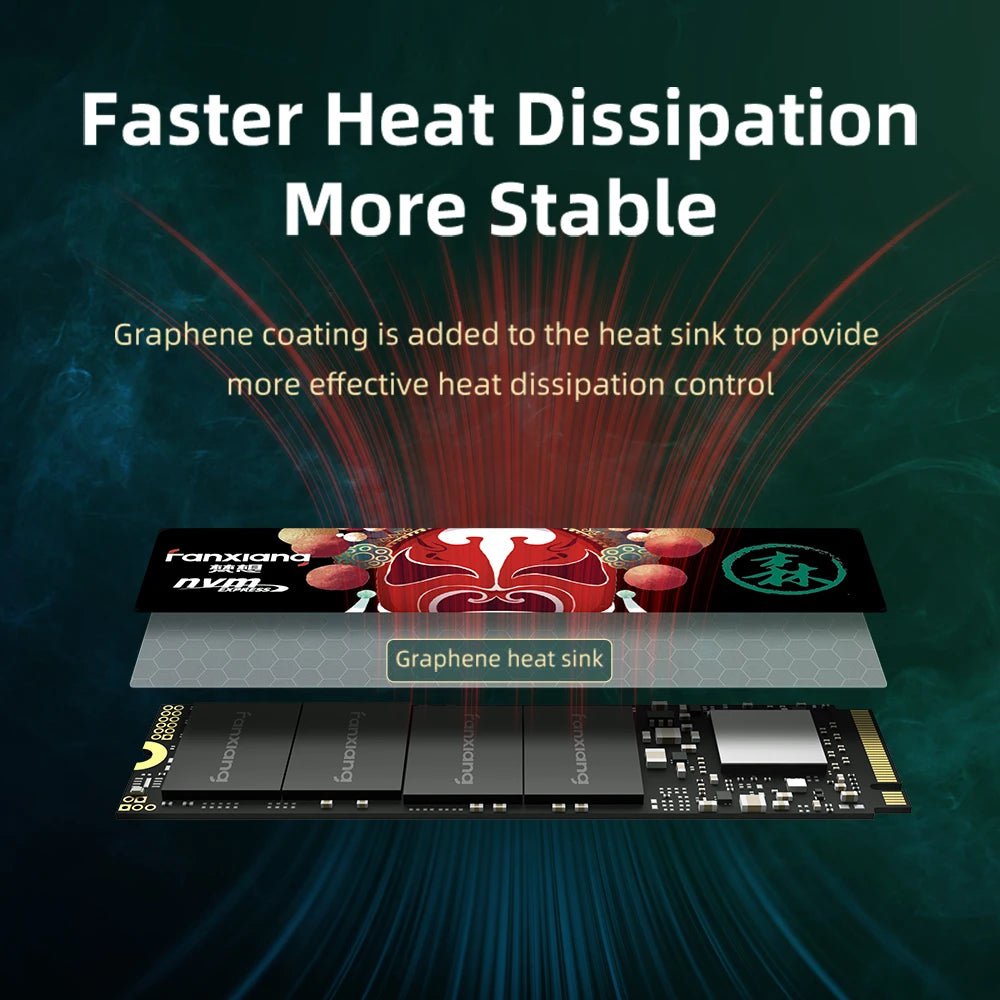

Fanxiang S790 M.2 SSD adds graphene heat dissipation stickers to provide effective heat dissipation control for internal ssd,improve its performance and service life
Preferred Chip
Fanxiang S790 ssd NVMe uses 3D NAND technology and high-quality TLC particles,which further improves product life and stability.There is no internal mechanical mechanism,good shock resistance, and high data security
Widely Compatible
Internal SSD is compatible with Windows7,8,10,11,Mac OS10.9,and later.Compatible with laptops,desktops,and all-in-one computers(computer motherboard must be equipped with M.2 interface)
