Description
SPECIFICATIONS
Brand Name: IWONGOU
Cooler Type: Tower
Model Number: 2pipe
Power Interface: 3pin/4pin
Blade Quantity: 7
Fan Speed: 1800 - 2200rpm
TDP: 65W
Supported CPU: LGA 1150
Supported CPU: LGA 1151
Supported CPU: LGA 1155
Supported CPU: LGA 1156
Supported CPU: LGA 1170
Supported CPU: LGA1200
Supported CPU: LGA 1356
Supported CPU: LGA 1366
Supported CPU: LGA 1700
Supported CPU: LGA 2011
Supported CPU: LGA 2011-3
Supported CPU: LGA 2066
Supported CPU: Socket AM3
Supported CPU: AM4
Heatpipes: 2
Fan Life: 30000 hrs
Air Volume: 50.5 CFM
Bearing: Fluid Bearing
Noise: 25dBA
Certification: NONE
Air Pressure: 23
Lines: 1 Lines
Origin: Mainland China
Fan Size: 90mm
Package: YES
Choice: yes
Product Size |
95*65*130 mm |
Fan noise |
20 dBA |
|
Heat sink group size |
95*42*130mm |
Fan interface |
3pin |
net weight |
290g/385g |
Bearing form |
Hydro Bearing |
|
Heat pipe specifications |
Ø6mm*2pcs |
Fan rated voltage |
12V DC |
Fan size |
90*90*25mm |
Fan rated current |
0.2A |
speed of the fan |
1800RPM±10% |
Fan power |
2.4W |
Fan air volume |
48CFM |
LED type |
RGB |
cpu coole
r

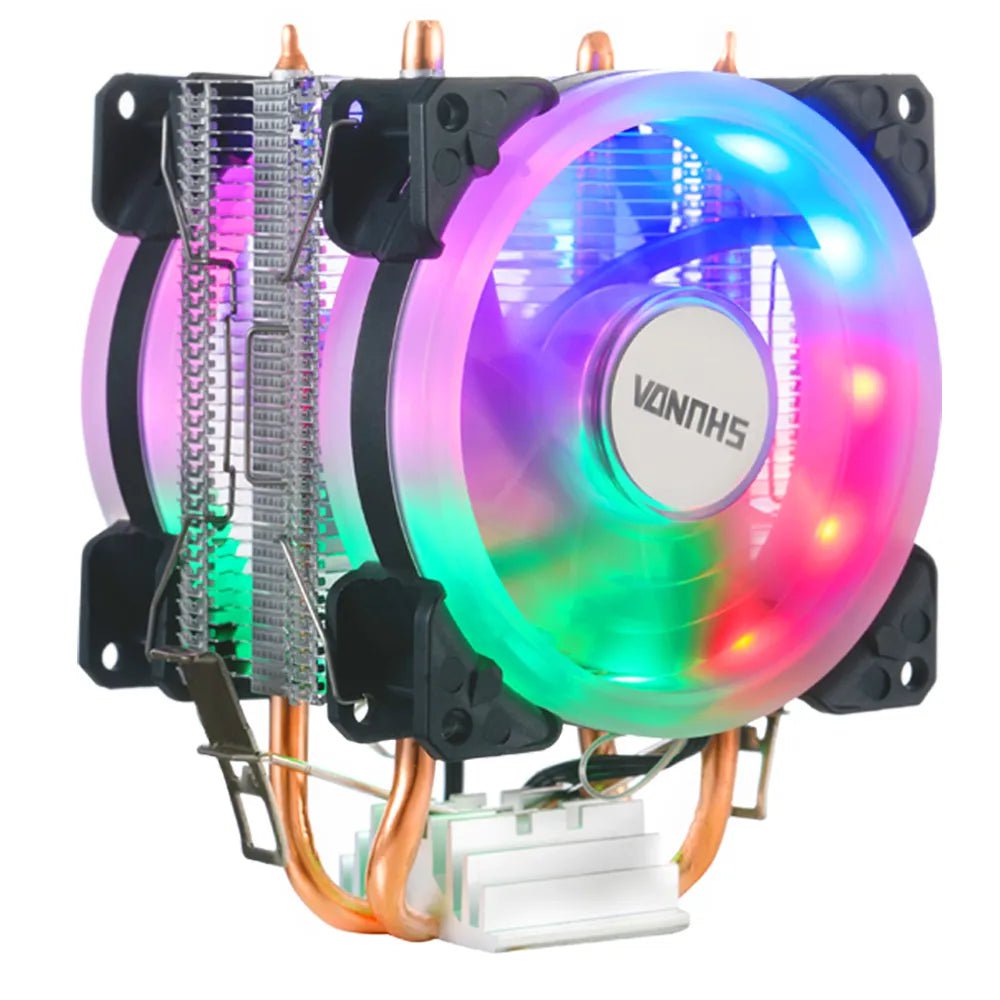

1,RGB lighting effect and soft light fan leaf, find different beauty.
2,Easy overclocking,support CPU power consumption of 65W,safe and efficient heat dissipation.
3,Tower heat dissipation structure:Thickened aluminum sheet, superior air flow structure, quickly take away the heat of fins.
Easy to install,support most platforms:
Optimize the fastener, simplify the installation process, and quickly disassemble even if the platform is replaced.
Package Contents:
CPU cooler * 1
Installation Kit * 1
Instructions * 1
Plastic nails*4
Plastic pin hole*4
Does not include thermal grease. ( It is a liquid prohibited item. It is easy to be intercepted by customs.)

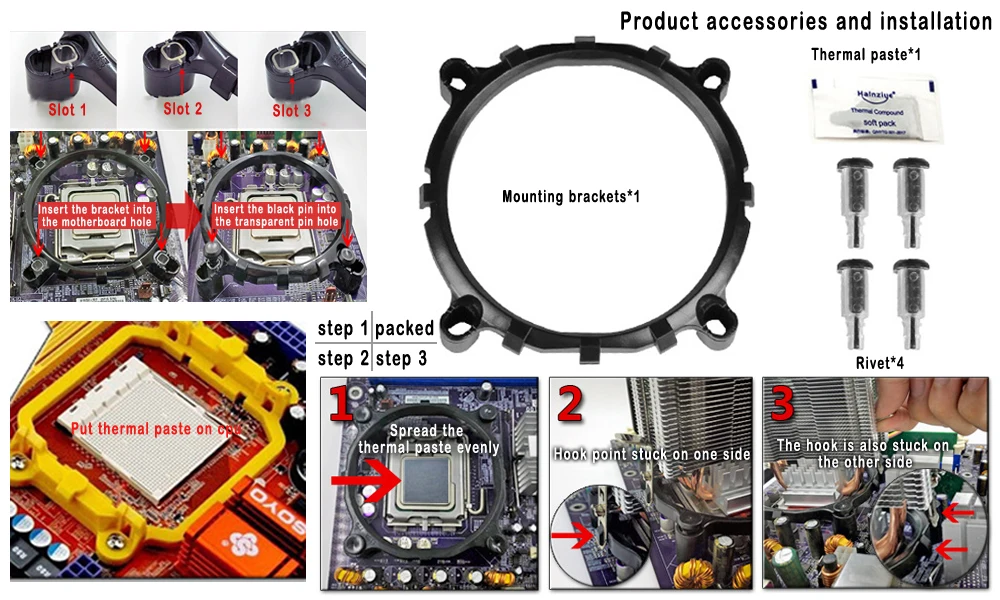

Installation steps:
Step1:Fix the bracket above the cpu with plastic nails;
Step2:Spread the thermal grease evenly on the cpu;
Step3:Fix the hooks on both sides of the cpu cooler to the brackets.
Operation as shown
AMD/AM4 it has base , so when you choice it , We do not ship the base

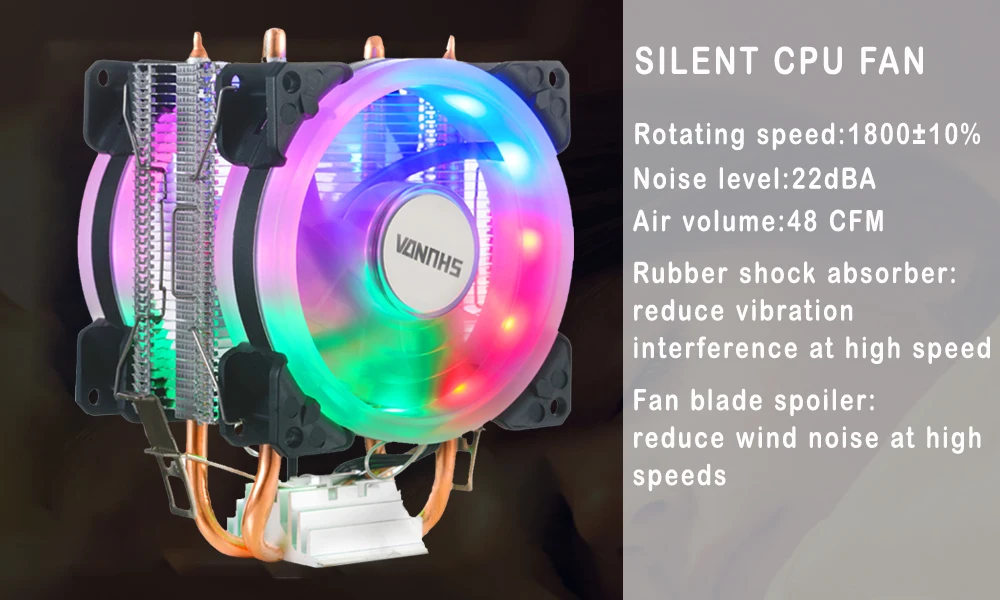

SILENT CPU FAN:
Rotating speed:1800±10%
Noise level:22dBA
Air volume:48 CFM
Rubber shock absorber:
reduce vibration interference at high speed.
Fan blade spoiler:
reduce wind noise at high speeds.

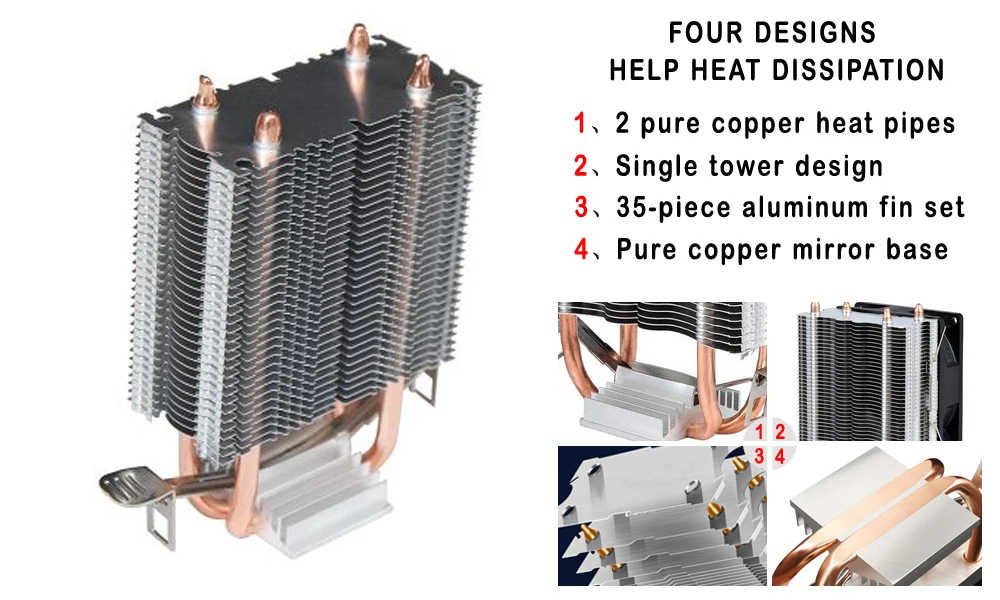

1,Pure copper 2 heat pipe,close contact with CPU for better heat dissipation.
2,35 aluminum fin sets, wide heat dissipation area, dispersed conduction, effectively reduce heat accumulation.
3,Mirror copper base,zero distance contact, the base adopts high specification electroplating process, which is as smooth as mirror. Under the action of the pressure fastener, it can fit the CPU more closely, and the heat transfer efficiency is higher.
