Description
SPECIFICATIONS
Brand Name: IWONGOU
Cooler Type: Tower
Model Number: AIR CPU COOLER
Power Interface: 3pin/4pin
Blade Quantity: 7
Fan Speed: 1800 - 1800rpm
TDP: 65W
Supported CPU: LGA 755
Supported CPU: LGA 775
Supported CPU: LGA 771
Supported CPU: LGA 1150
Supported CPU: LGA 1151
Supported CPU: LGA 1155
Supported CPU: LGA 1156
Supported CPU: LGA 1170
Supported CPU: LGA1200
Supported CPU: LGA 1356
Supported CPU: LGA 1366
Supported CPU: LGA 1700
Supported CPU: LGA 2011
Supported CPU: LGA 2011-3
Supported CPU: LGA 2066
Supported CPU: Socket FM1
Supported CPU: Socket FM2
Supported CPU: Socket AM3
Supported CPU: Socket AM5
Supported CPU: Socket AM3+
Supported CPU: AM4
Heatpipes: 2
Fan Life: 20000 hrs
Air Volume: 35
Bearing: Fluid Bearing
Series: air cooler cpu
Noise: 22dBA
Certification: NONE
Lines: 3 Lines
Origin: Mainland China
Fan Size: 90mm
Choice: yes
The main parameters:
Product Size:130*80*95mm
Heat sink group size:130*42*95mm
net weight:400g(1fan),500g(2fan)

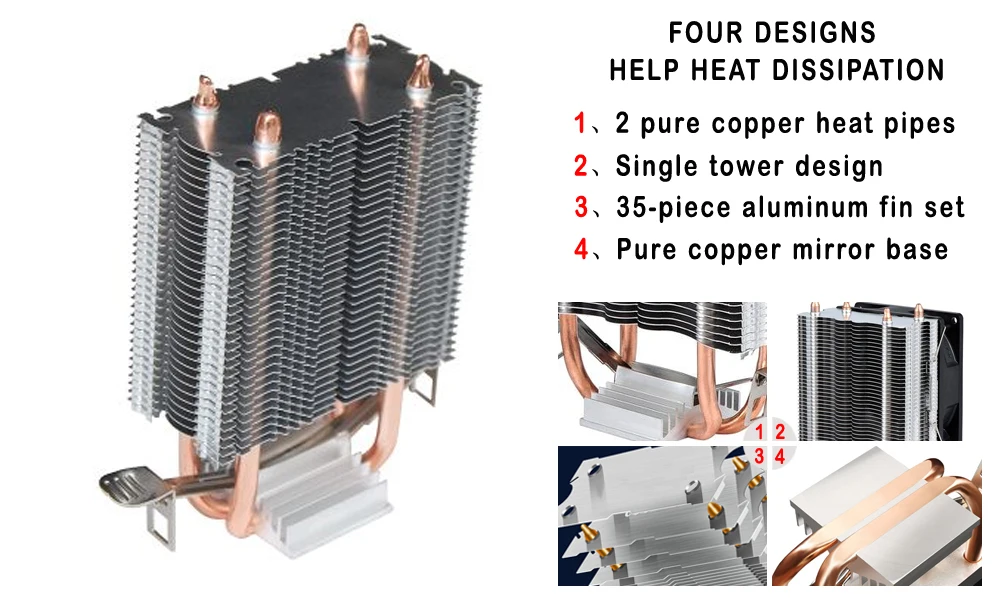

Heat pipe specifications:Ø6mm*2pcs
Fan size:90*90*25mm
speed of the fan:2000RPM±10%
Fan air volume:52CFM
Fan noise:22 dBA
Fan interface:Small 3 pin
Bearing form:hydraulic bearing
Fan rated voltage:12V DC
Fan rated current:0.2A
Fan power:2.5W
Rgb type:rgb
Model:hurricane air cooler cpu

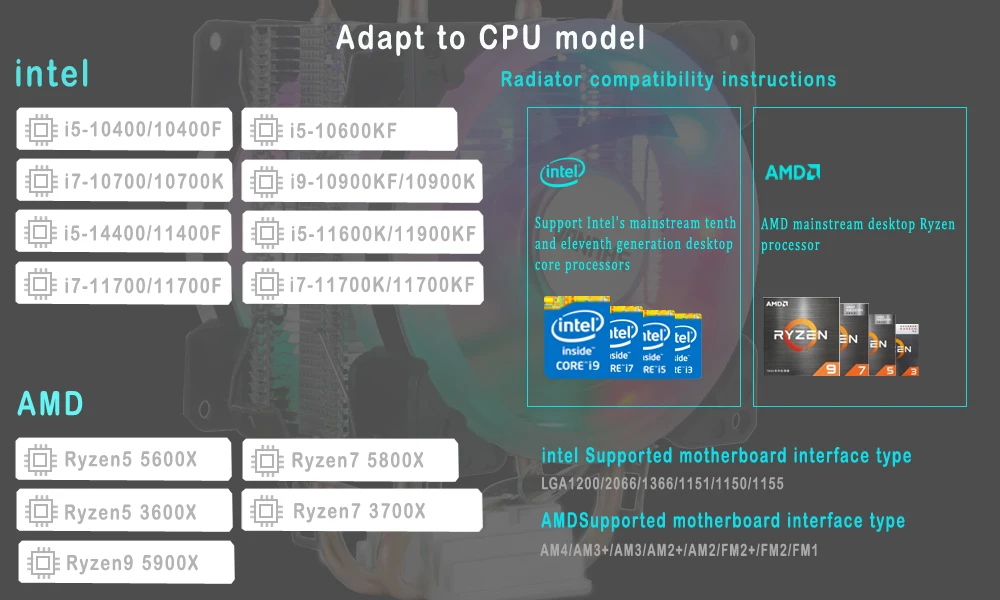

intel Supported motherboard interface type
For cpu cooler LGA1200/1366/1151/1150/1155
AMDSupported motherboard interface type
For cpu cooler AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1Under normal circumstances, 2 cpu heatsink copper pipes can effectively cooling cpu temperature by 10-15 degrees Celsius.
Package Contents:
CPU cooler * 1
Installation Kit * 1
Instructions * 1
Plastic nails*4
Plastic pin hole*4
Does not include thermal grease. ( It is a liquid prohibited item. It is easy to be intercepted by customs.)

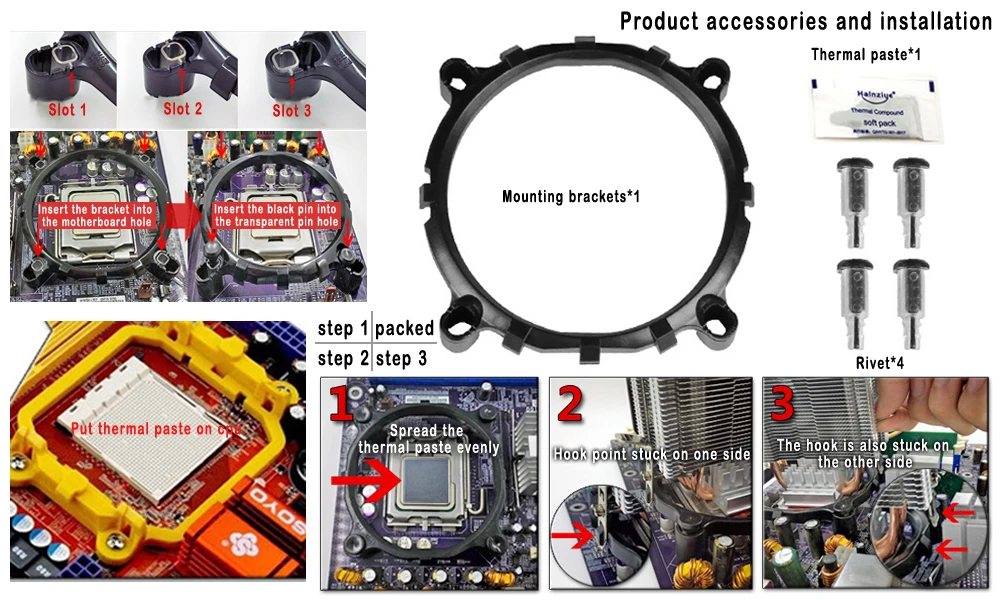

Installation steps:
Step1:Fix the bracket above the cpu with plastic nails;
Step2:Spread the thermal grease evenly on the cpu;
Step3:Fix the hooks on both sides of the cpu cooler to the brackets.
Operation as shown
