Description
SPECIFICATIONS
Brand Name: MUCAI
Chipset: H61
Onboard LAN: 1x RJ45
Maximum Ram Capacity: 16 GB
Processor compatibility: Intel Core i7
Processor compatibility: Intel Core i3
With CPU: Yes
Support Memory Type: DDR3
Number of PCI: 1
Storage Interface Type: SATA 2
Package: Yes
RAID Supported: no
Application: Desktop
Chipset Manufacturer: Intel

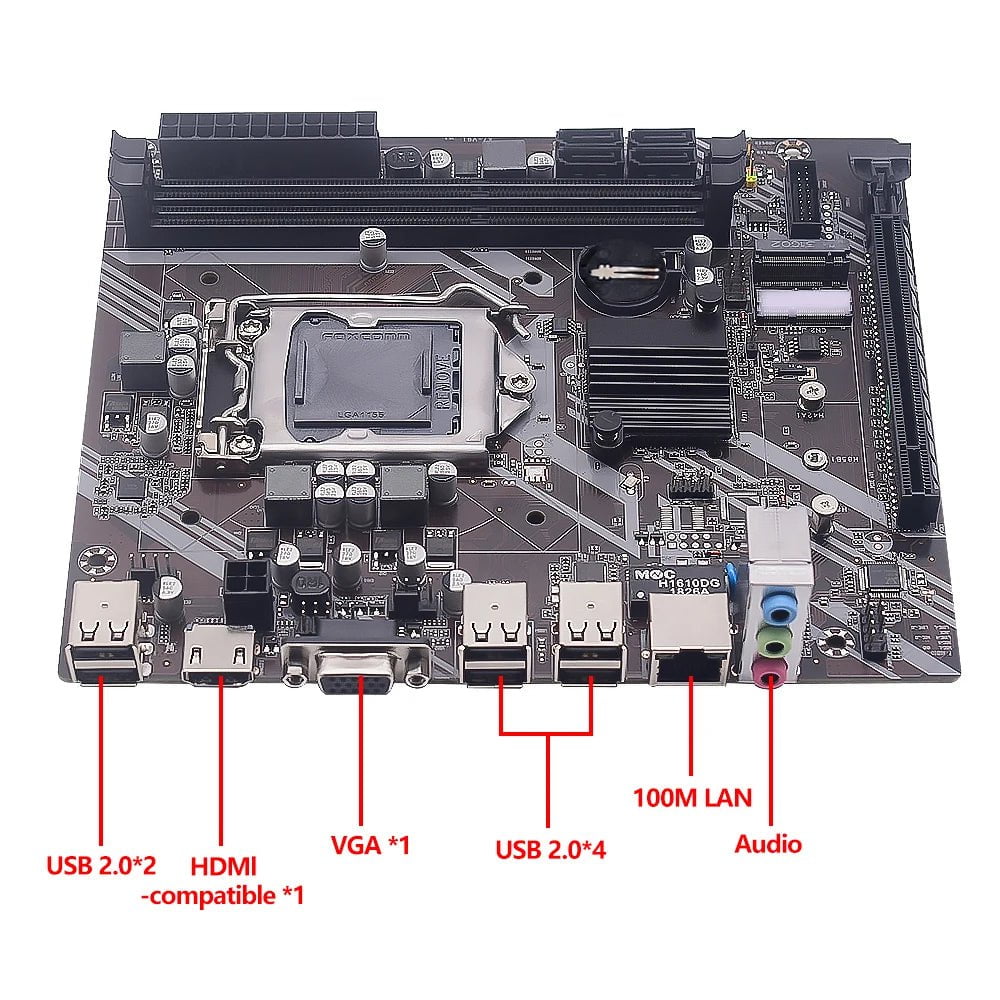

Back I/O Ports: 1x RJ45
Back I/O Ports: VGA(D-Sub)
Back I/O Ports: 6 x USB 2.0
Back I/O Ports: 3 x Audio Jacks
Back I/O Ports: HDMI 1.4
PCI - E standards: PCI - E 3.0
Socket Type: LGA 1155
Special Function: NONE
Usage Scenario: Audio & Video
Usage Scenario: Household
Usage Scenario: Office
Usage Scenario: Others
Origin: Mainland China
Number of PCIe x 8: 0
Number Of Memory Slots: 2
Support USB Type: USB 2.0
Number of PCIe x 4: 0
Number of PCIe x 16: 1

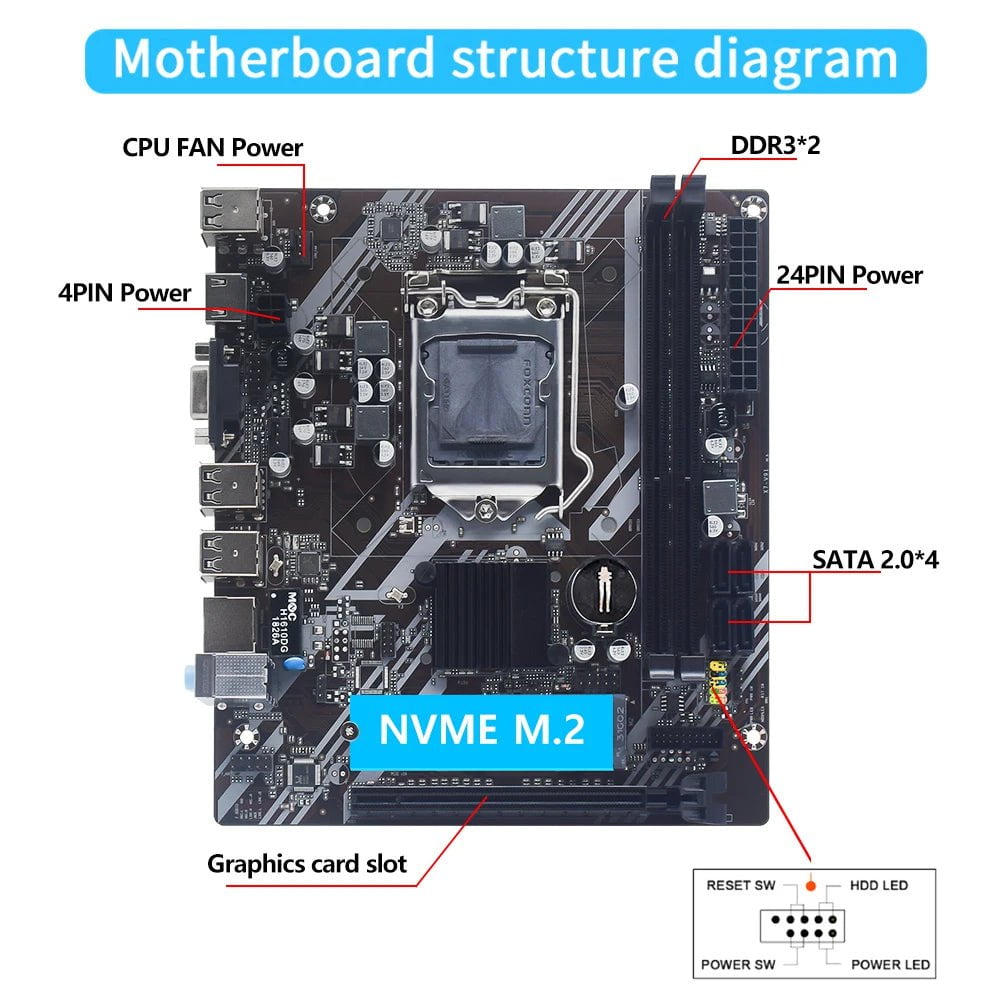

Onboard Connectors & Header: 24-pin Main Power Connector
Onboard Connectors & Header: CPU Fan Connector(s)
Onboard Connectors & Header: AAFP Connector
Onboard Connectors & Header: USB 2.0 Connector
Onboard Connectors & Header: System Panel(s) (Chassis intrusion header is inbuilt)
Memory channel: Double
Audio Channels: 2.1
SATA RAID: 1
Quality Certification: ce
Certification: RoHS
Certification: CE
Form Factor: SSI CEB
Number of M.2: 1
Choice: yes
Feature:
100% brand new and high quality!
High compatibility for a higher experience.
All solid capacitors, fine workmanship, professional stability.
Specification:
Chipset: H61
Model: MUCAI
Condition: Full new
CPU socket: LGA 1155
Structure:Micro-ATX
CPU supported: for Intel series with LGA 1155 socket(For Intel Core i3/i5/i7 Pentium)
Memory socket: 2*DDR3
Max memory supported: 2*16G DDR3
Memory type supported: 1333/1600mhz Desktop Memory
Integrated video card: YES(Requires CPU to support integrated display)

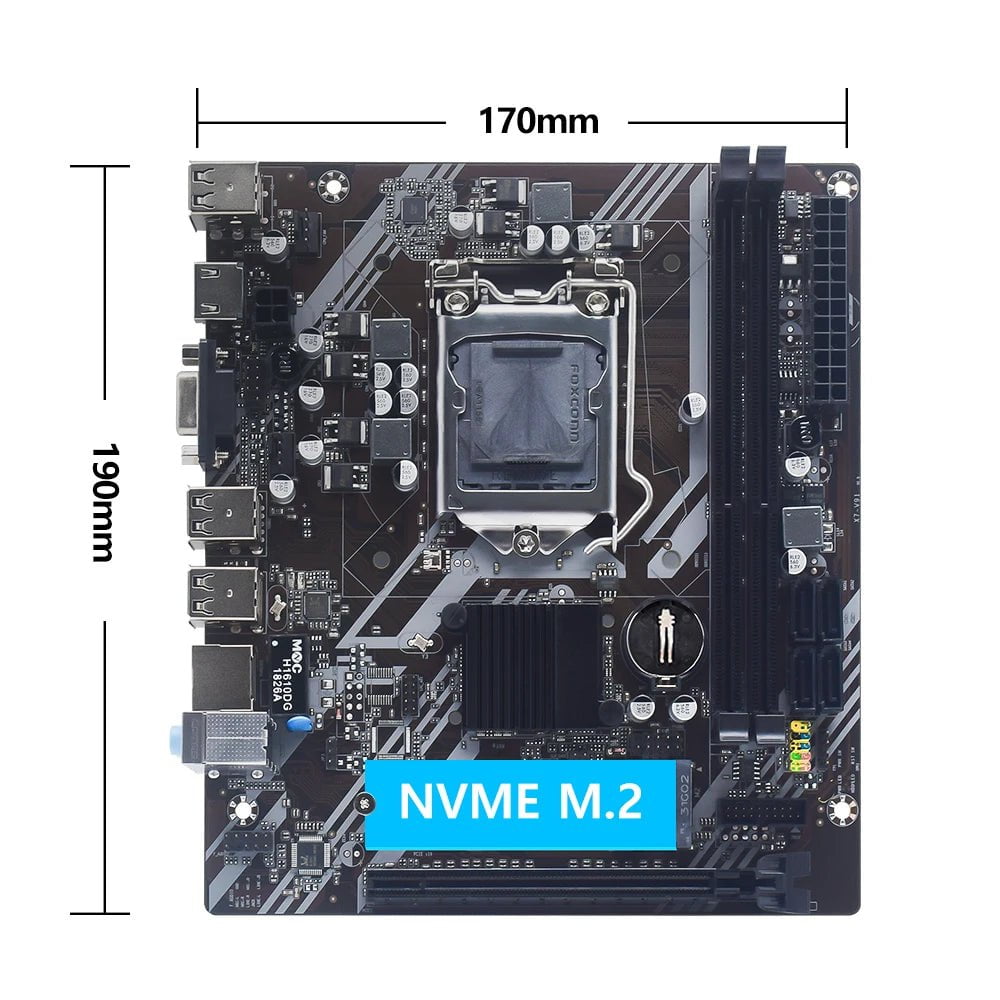

Motherboard dimension: 190*170mm
Motherboard weight(including package): 0.7kg or so
Package Included:
1* H61 Motherboard
1* Back Plate
1* SATA Cable
