Description
SPECIFICATIONS
Item Type: Heating Controller
Brand Name: SUNLU
Model Number: S2 DRYER BOX
Origin: Mainland China
Choice: yes
• High-Quality Material :Crafted with superior materials, the SUNLU S2 3D Printing Accessories Filament Dryer Box ensures durability and longevity.
• Optimal Temperature Control :With a maximum temperature of up to 70°C, this device offers optimal temperature control for your 3D printer material.
• 360° Surrounding Heating :The 360° surrounding heating feature ensures even distribution of heat, enhancing the overall printing quality.
• Versatile Use :This product is a versatile accessory for 3D printers, improving the efficiency and effectiveness of your printing tasks.
• Easy to Use :The SUNLU S2 Filament Dryer Box is user-friendly, making it easy to operate and integrate with your 3D printer.
• Brand Reliability :Coming from the reputable brand SUNLU, this product guarantees reliability and excellent performance.

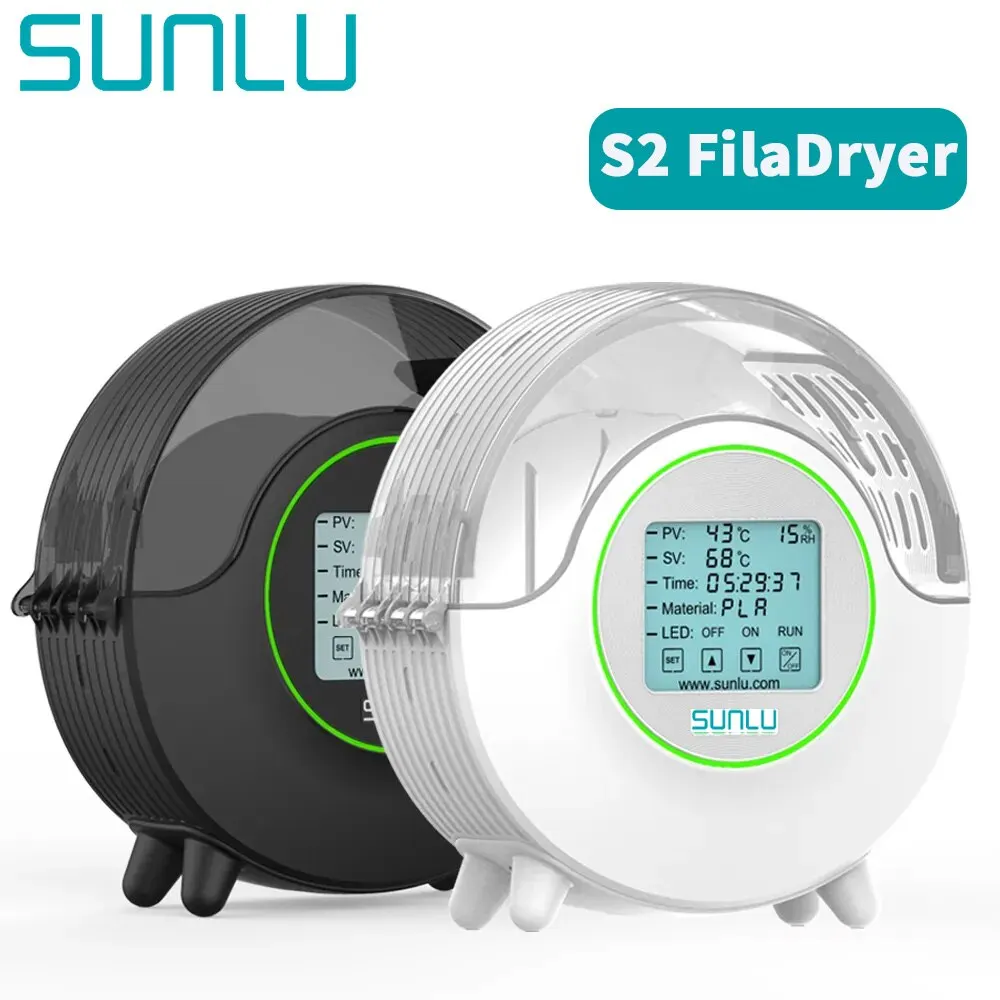

Sunlu 3D printing mate drone box S2
1. Upper and lower double heating plates, 360-degree encircling heating.
2.Large 4.6-inch LCD monitor,Display temperature, time, humidity, filaments type, countdown time.
3. Dual temperature probes, detect the temperature of the box and the heating element, the temperature is accurate, and the safety is high.
4. It can be heated to 70 degrees, and can dry special materials such as PA PC.
5. One key operation
6. LED marquee light, showing real-time working status
Name: S2 Filament Dryer Box
Color: White/Black
Product size : 265(L) X274(W) X 118(H) mm
Input power :AC 100V~240V，50/60Hz
Max coil size : φ210*85(H)mm
Outputp ower : DC:24V±1.2V，2A
Net weight of product :1109g
Standby power: 0.05W
Filament diameter :1.75mm/2.85mm/3.00mm
Max working electricity:1.8A
Relative humiditet: < 90%
Max working power : 48W
The best use of ambient temperature: 20 ℃ ~ 35 ℃
LCD Screen size: LCD monitor
S2 Dryer Features:
· Upper and lower double heating plate, 360° surround heating.
· Can be heated to 70 ℃,
Special materials such as PA, PC can be dried.
· Extra large 4.6 inch(3.42*2.87) touch screenLCD monitor.
Display temperature,humidity, consumable type, countdown time.
· Dual temperature probes detect temperature, the temperature is more accurate.
· LED Marquee lime, showing real-time working status. The greater the difference between the measured temperature and the set temperature, the faster the upward accumulation speed; the temperature difference and the accumulation speed change in the same direction.
Reference settings:
PLA/PLA +/SILK/Wood/PETG:45℃-50℃, 3-6 Hours.
ABS /ABS50℃-55℃, 3-6 Hours.
PA/PC:60℃-70℃, 3-6 Hours.
Filamnet |
PLA/PLA +/ SILK |
Wood |
PETG |
PVB |
ABS/ABS + |
HIPS |
PVA |
ASA |
TPU |
PMMA |
PA/PC |
|
Dry Temp (℃) |
45-50 |
50-55 |
60-70 |
||||||||
|
Dry Time (H) |
3-6 Hours |
||||||||||
Suggestion |
1: Before printing, it is recommended to bake first and then print; after baking, it is better to print while baking. 2: When the ambient temperature is too low and the drying oven does not heat up to the set value, it is recommended to extend the baking time for more than 1 hour. 3: Reference table for drying time and temperature of commonly used consumables. |
||||||||||

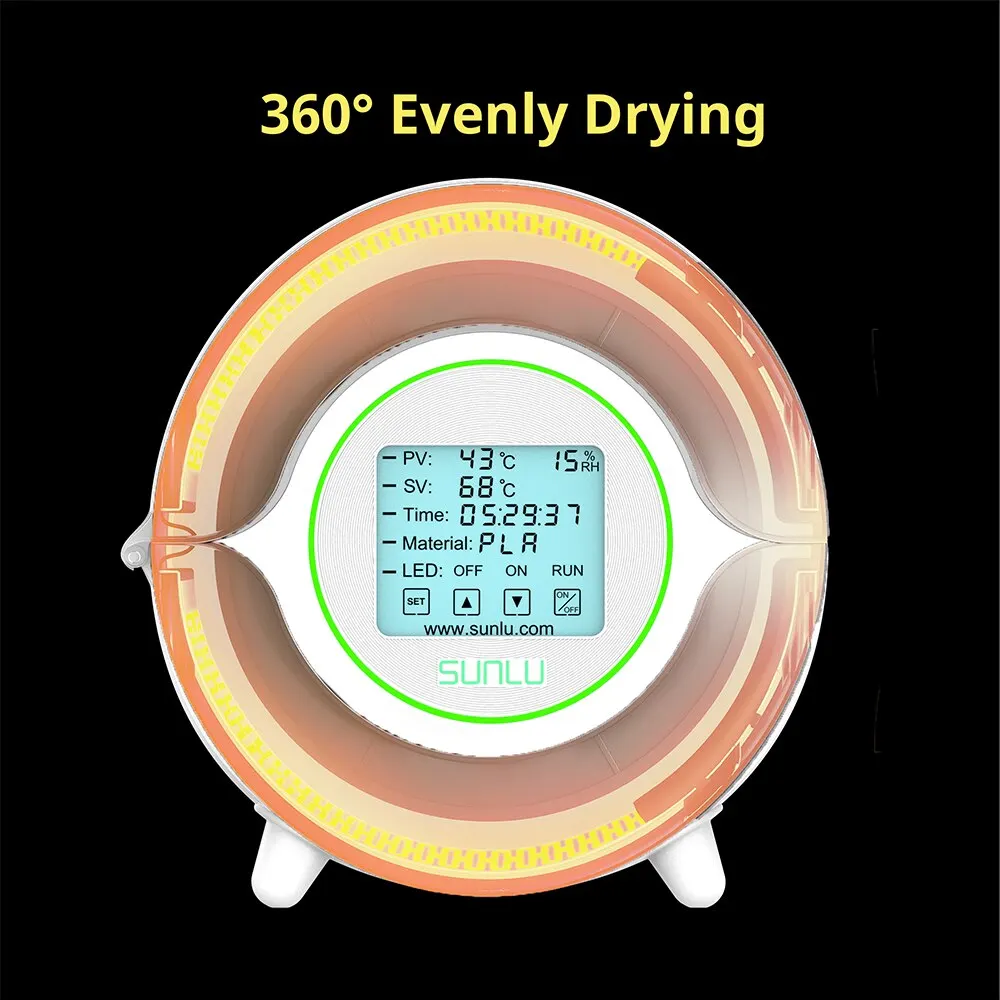

360° Surround Heating:
Upper and lower double heating plate
· Heating speed twice faster than most drying box in the market.
· Evenly heatingtemp from top to bottom, better drying.

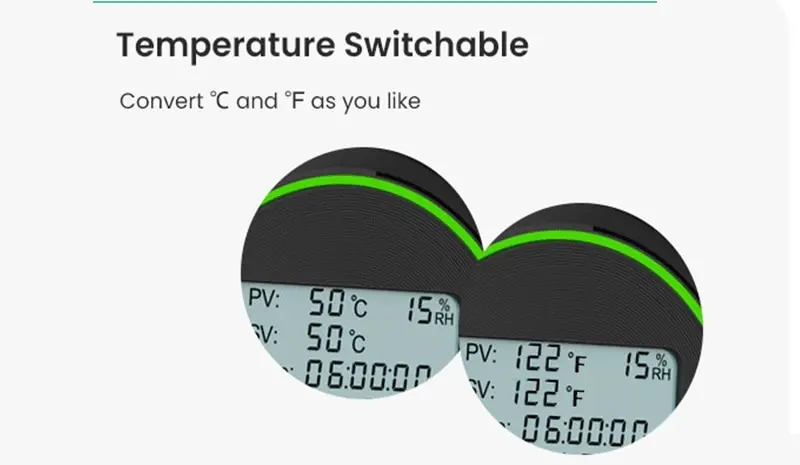

Temperature Switchable:
· Temperature adjustment range: 35 ℃ ~ 70 ℃.
LED touch screen
· 4.6 inch size: Display multiple contents simultaneously
· Touch operation: Convenient and flexible the operation
· Display temperature, humidity, consumable type, countdown time.
Compare the drying effect:
Effectively reduce moisture in filaments and reduce printing bubbles.
Intelligent control:

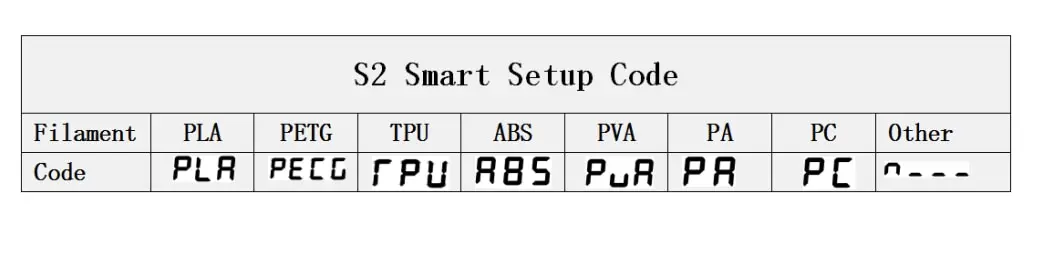

Intelligent presets for multiple filaments and drying modes, no need manual setting.
You can set drying modes that you want to. Once set up, you can use it all the time.
